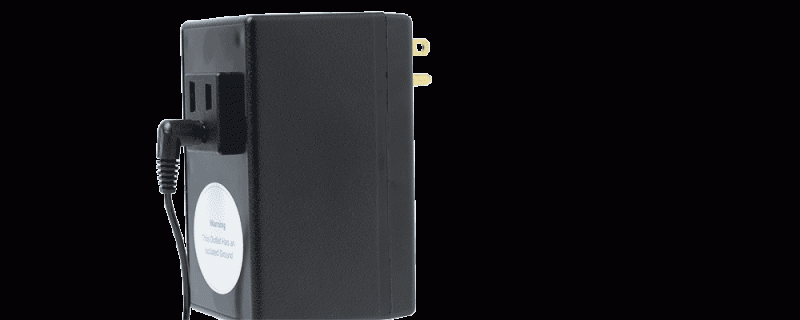

The Nuisance Current Blocker offers many benefits, which we describe elsewhere. Beyond the essential benefits, there are multiple other uses for the NCB, which we describe in this article.
Representing the Body
Normally when you measure contact currentDefinition and Basic Concept Contact current refers to the electrical current that flows through a person’s body when they come into physical contact with an object that is electrically charged.... More, your body needs to be in the equation, as in this diagram.
Using the NCB, you can remove the body from the equation as diagrammed here.
Instead of holding onto the red lead on the Fluke 287 or 289 and use your body as the contact point, plug the black lead into the NCB, set the NCB dial from anywhere between 1000-2000 ohms to represent your body and put the red lead on the object. That will test between the object and the grounding reference simulating your body in between the points.
Wet conditions could be between 300-500 ohms and dry ideal conditions with no frequencies up to 10,000 ohms of resistance"Resistance" is a fundamental concept in the field of electricity and electronics, central to understanding how electric circuits operate. It refers to the opposition that a material or a device... More.
Spectrum Analysis
Using a differential probe to measure noise on a grounding conductorThe term "conductor," in the context of electromagnetic radiation, refers to materials or substances that allow for the efficient passage of electromagnetic energy, including both electric currents and electromagnetic fields.... More is difficult, unless you have an NCB.
Want to Slash Your EMF Health Risks?
Want to Slash Your EMF Health Risks?
Good! Learn the one small change you should make right now.
The red lead attaches to the grounding mat that is plugged into an outlet and the black lead typically plugs into the outlet as well.
Measuring the same point won’t give you very good results.
But putting the black lead into the NCB, finally you can then see the red lead pop up the frequencies on the grounding conductor in the wall.
Removing Grounding Loops
A grounding loop is two or more appliances, connected together in some way (common grounding system) but fed (powered and grounded) from different outlets. It creates a loop.
Using the NCB on one of the appliances will help remove the loop. Caution: remember to always measure the possible rise in electric fieldIn the context of electromagnetic fields (EMF), the term "field" refers to a region in space where electric and magnetic forces are exerted. An electromagnetic field is generated by electrically... More if the appliance can’t find a groundIn the context of electricity, "ground" or "earthing" refers to a reference point in an electrical circuit from which voltages are measured, a common return path for electric current, or... More reference. You want appliances grounded in one place, from one source, not two.
Very applicable to Oscilloscope testing equipment, being sure to not blow up your equipment. You don’t want to have the grounding systems from two sources coming together on delicate grounded test leads.
Appliances
If you have found a certain appliance is leaking current or dirty electricityDirty Electricity, also known as electrical pollution, refers to the presence of irregularities or distortions in the normal electrical current within a wiring system. These distortions, which deviate from the... More “noise” to its grounding conductor, use the NCB plug.
This will reduce the “noise” contaminating your grounding system from that appliance but likely increase the electric field around the appliance and possibly increase contact current exposure should you touch the appliance.
It is best to have appliances, especially ones with metal frames and handles, solidly grounded with no resistance on the grounding conductor.
So, start by turning the dial all the way to the left, allow as much current through as the NCB will allow, while still filtering the grounding conductor. The setting provides about 14 Ohms of resistance.
Adjust the dial to the desired balance between the variables, current/noise on grounding system and electric field/contact current in immediate environment.
Work Stations
The basic principle is ground appliances, not humans. But if you have to be tethered to a grounded wrist strap at work, because of the possible static build up and discharge, the NCB may work very well to reduce the current through your body, slowly discharge the static build up and most of all, maintain an effective ground-fault path to keep you safe.
GFCI
In all applications with the NCB, it is best to have a GFCI outlet in the wall outlet to add some much needed protection. Our home circuit breakers are pretty dumb and hard to trip. GFCI outlets improves your chances of ground-fault protection significantly.
